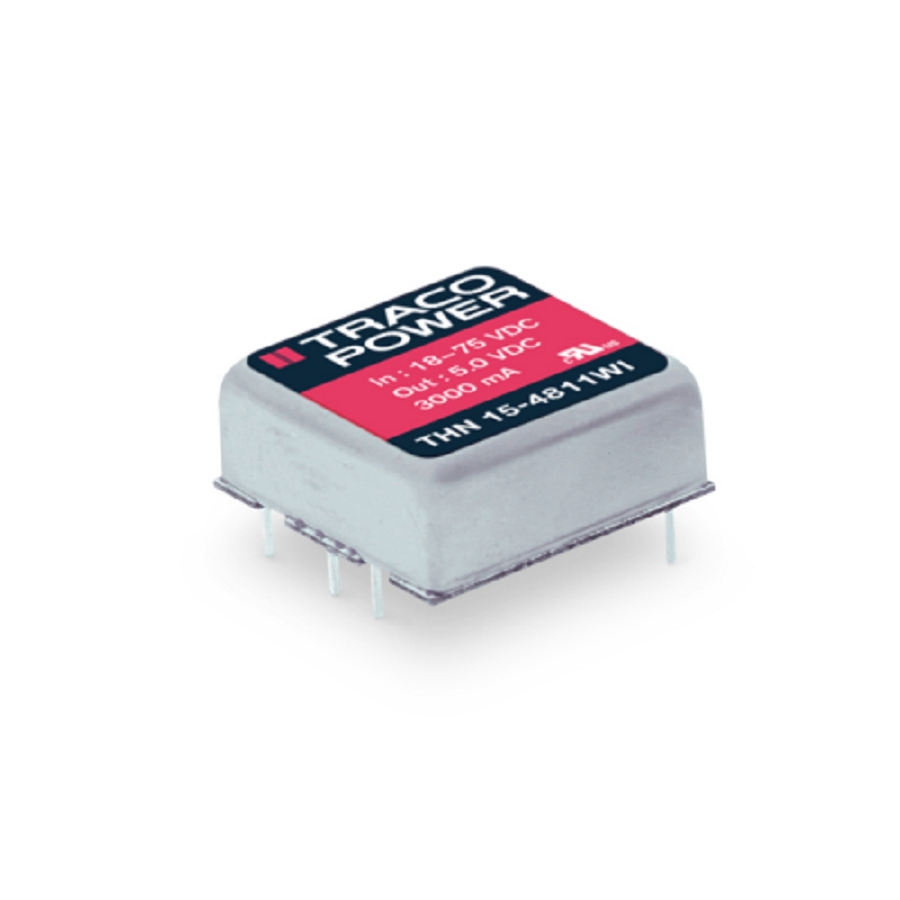

THN 15-2410WI
Manufacturer:
TRACO Power
Mfr.Part #:
THN 15-2410WI
Datasheet:
Description:
Board Mount Modules DIP-6 Module Through Hole Current - Output 1:4 A Voltage - Output 1:3.3 V 86 %
| Parameter | Value |
|---|---|
| Length | 25.4 mm |
| Width | 25.4 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Power Rating | 15 W |
| Height | 9.9 mm |
| Packaging | Tube |
| Depth | 25.4 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 15 g |
| Features | Remote On/Off, OVP, SCP, UVLO |
| Min Input Voltage | 9 V |
| Output Current | 4 A |
| Output Voltage | 3.3 V |
| Max Output Current | 4 A |
| Max Input Voltage | 36 V |
| Number of Outputs | 1 |
| Isolation Voltage | 1.6 kV |
| Output Power | 15 W |
| Current - Output 1 | 4 A |
| Efficiency | 86 % |
| Voltage - Output 1 | 3.3 V |
| Max Input Voltage (DC) | 36 V |
| Nominal Input Voltage | 24 V |
| Max Output Power | 15 W |
| Min Input Voltage (DC) | 9 V |
| Isolation | Isolated |
Stock: 430
Distributors
pcbx
pcbxUnit Price$26.37800
Ext.Price$26.37800
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $26.37800 | $26.37800 |
| 10 | $25.76416 | $257.64160 |
| 25 | $25.52828 | $638.20700 |
| 50 | $25.29480 | $1264.74000 |
| 100 | $25.10159 | $2510.15900 |
